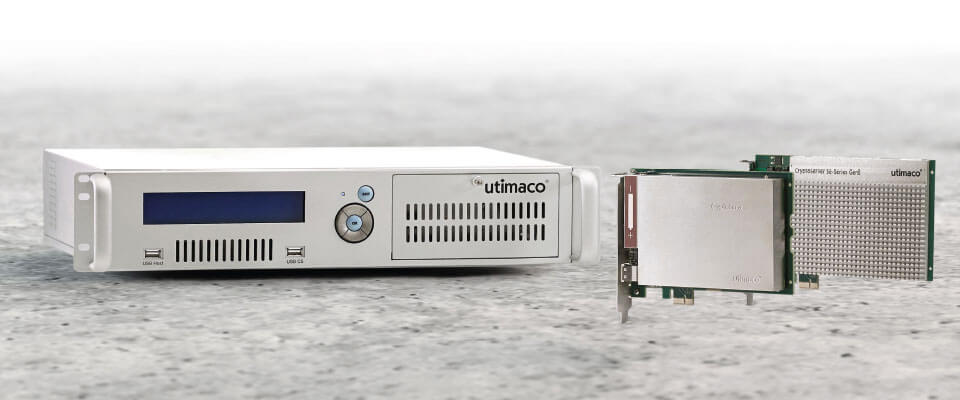

utimaco-sdk_2017

SafeGuard® CryptoServer Se-Series is a Hardware Security Module (HSM) which is optimized for common security requirements in commercial environments. The SafeGuard® CryptoServer Se-Series is certified: FIPS 140-2 level 3. SE-Series offers the highest level of performance up to 12800 signatures per second.

The Se-Series provides investment security through open internal programming interfaces making it possible to integrate with almost any application in the secured area. The SafeGuard® CryptoServer Se-Series was developed for securing standard cryptographic operations in today’s security-critical business applications. Areas of application include identity management and PKI environments, document management and archiving solutions as well as database security.

There are four models of Se-Series, in order to be able to satisfy diverse performance demands in different areas of application. These allow the calculation of up to 100, 500, 4000 and 12800 RSA signatures per second. All models are available as PCIe cards, which are suitable for all common PC and server architectures, and as 19″ network appliances, which are ideal for use in computer centers. Choose Se-Series if you need an industry standard HSM that is optimized for common security requirements in a commercial setting.

HSM Utimaco SafeGuard® CryptoServer Se-series LAN

As a Central point of security for critical applications, Se LAN simplifies encryption and signing of key management. Its high availability features ensures business continuity. It also offers extreme scalability with no limitation regarding connections

HSM Utimaco SafeGuard® CryptoServer Se-series PCIe

While Se PCIe offers a cost effective HSM for servers, it does not neglect performance as it is optimized for cryptographic acceleration in host applications. Se PCIe also has integrated key management feature.

SafeGuard® CryptoServer Se-series Features:

  • Low operational costs
    • Highest performance at an attractive price
    • Inexpensive starter models for applications with lower performance requirements
    • Extensive remote administration
    • Efficient key management and firmware updates via remote access
    • Automation of remote diagnosis through network management system using SNMP protocol
  • Capabilities
    • Secure key storage and processing
    • Cryptographic offloading/acceleration
    • Extensive key management
    • Key storage inside HSM or as encrypted key files
    • Multiple options for user authentication and access control
    • SmartCard for strong authentication
    • “n out of m” authentication
    • Separation of duties
    • Remote Management
    • Supported OS: Windows and Linux
    • Multiple integrations with PKI applications, database encryption, etc.
  • Cryptography
    • RSA
    • ECDSA, NIST and Brainpool curves
    • DSA
    • DH, ECDH
    • AES
    • DES, Triple DES
    • SHA-1, SHA-2, RIPEMD
    • MAC, CMAC, HMAC
    • Hash-based Deterministic Random Number Generator (DRNG)
    • True Random Number Generator (TRNG)
  • Security, safety, environmental compliance
    • FIPS 140-2 Level 3
    • CE, FCC Class B
    • UL, IEC/EN 60950-1
    • CB certificate
    • RoHS II, WEEE
  • Application Programming Interfaces (APIs)
    • PKCS#11
    • Java Cryptography Extension (JCE)
    • Microsoft Crypto API (CSP), Cryptography Next Generation (CNG) and SQL Extensible Key Management (SQLEKM)
    • Cryptographic eXtended services Interface (CXI)
      • Utimaco‘s high performance interface guarantees easy integration of cryptographic functionality into client applications
