AEP Keyper Plus

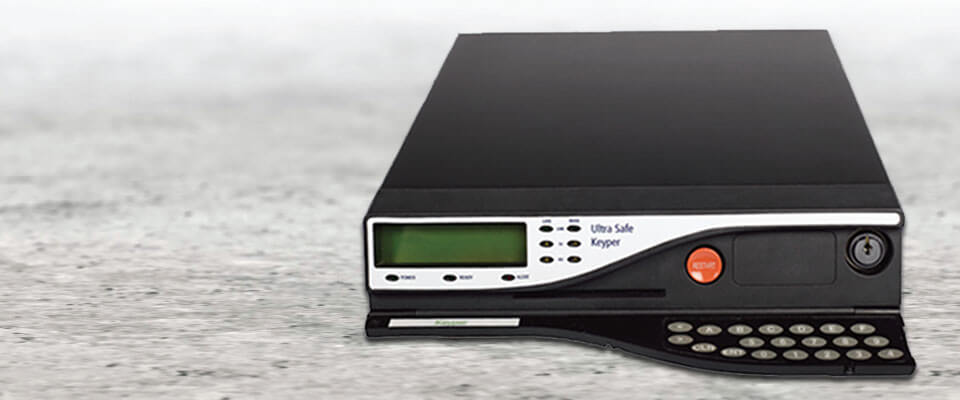

keyperplus_2017
Ultra Electronics AEP has designed the Keyper Plus range of HSMs to provide the ultimate level of protection for the most sensitive data and information systems. At the heart of KeyperPlus is AEP’s revolutionary ACCE technology.

ACCE is the next generation flexible crypto platform that provides the highest level of assurance FIPS 140- 2, Level 4. Based on this core technology, AEP has built a product range to cater to the PKI, VPN and Internet security markets.

The Keyper Plus HSM is ideally suited to businesses deploying a cryptographic system where the protection of cryptographic keys is a priority, for example, in organizations requiring certificate signing, code or document signing, bulk generation or ciphering of keys or data.

The Keyper Plus HSM is available in three models offering various levels of scale and performance.

Keyper Plus (with or without ECC) Features:

  • Architecture – Built using ACCE giving tamper protection to FIPS 140-2 Level 4
  • Design – Integrated smart card reader, PIN entry and cryptographic processing
  • Fault Tolerance – Supports resilient configurations
  • Scalability – Load balancing of multiple HSMs across multiple hosts
  • Choice of Interfaces – PKCS#11, Microsoft CAPI, Java JCE/JCA
  • Connectivity – Ethernet connectivity offering greater scalability and flexibility
  • Manageability – Small footprint allows desktop use or rack mounting
  • Field Upgradable – Upgrade firmware and algorithms in the field
  • Authenticated Use of Keys – Optionally PIN activated
  • Operating Systems – Linux, Free BSD
ModelKeyperPlus
Product Dimensions 223 x 51 x 244 mm
Power Requirements100 – 240VAC, 47-63 Hz (65VA)
Optional Redundant Power Module
Cryptographic Functions and
Services (firmware v3.0)
  • ECDSA curves:
    • P192 – P521
    • brainpoolP224r1 – P512r1
    • brainpoolP224t1- P512t1
    • secp256k1
  • ECDH curves:
    • P192 – P521
    • brainpoolP224r1 – P512r1
    • brainpoolP224t1- P512t1
  • RSA: 1024 – 4096 bit key length
  • DSA: 1024 bit key modulus
  • AES: 128 – 256 bit key length
  • 3DES: 168 bit key length
  • SEED: 128 bit key length
  • Hash: SHA-2, RIPEMD-160
Performance (key signing,
using up to 8 connections)
  • >3,500 tps (RSA 1024)
  • >2,000 tps (RSA 2048)
  • >950 tps (ECDSA 256)
Random Number GenerationHardware random number generator with full entropy (FIPS 186-2 compliant)
Administrator Roles
  • Security Officer
  • Crypto Officer
  • Operator
Key Management
  • Storage Master Key (SMK) import/export via smart cards in M of N components
  • Application Key import/export via smart card or USB protected with an internal Master Key
Key Protection
  • Red Key Store: keys actively erased when a tamper is detected
  • Black Key Store: large key store encrypted under the SMK
Key Storage15,000 keys (any size)
Connectivity
  • TCP/IPv4 and IPv6 over Ethernet at 10/100/1000 Mbps full/half duplex with auto-negotiation
  • Up to 256 concurrent connections
Device ManagementLocal or remote using Keyper Management Centre (remote management requires firmware v3.0 or later)
Crypto Module CertificationFIPS 140-2 Level 4 (cert. #2298) firmware v2.3
Operating Environment
  • Operating temp: 5 to 40 °C (25 to 90% humidity, non-condensing)
  • Storage temp: -15 to 65 °C
Host Software
  • PKCS#11 Provider
  • MS-CAPI Provider
  • MS-CNG Provider
  • Keyper Load Balancer (optional)
